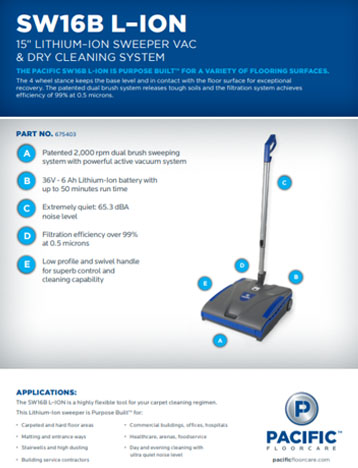

PACIFIC
SW16B L-ION
LITHIUM-ION SWEEPER VAC & DRY CLEANING SYSTEM
The 4 wheel stance keeps the base level and in contact with the floor surface for exceptional recovery. The patented dual brush system releases tough soils and the filtration system achieves efficiency of 99% at 0.5 microns.
BATTERY: 36V – 6Ah Lithium-ion
RUN TIME: 50 minutes
LOW NOISE LEVEL: 65.3 dBA
FILTRATION: 99%+ at 0.5 microns
THE PACIFIC SW16B SWEEPER VAC IS PURPOSE BUILT ™ FOR:
- Carpeted and hard floor areas
- Matting and entrance ways
- Stairwells and high dusting
- Building service contractors
- Commercial buildings, offices, hospitals
- Healthcare, arenas, foodservice
- Day and evening cleaning with ultra quiet noise level
The Pacific SW16B L–ION is a highly flexible tool for your carpet cleaning regimen.
PACIFIC
SW16B Specifications
Model Specifications: Pacific SW16B |
|
|---|---|
| Model number | SW16B L-ION |
| Part number | 675403 |
| Working width (in) | 15 |
| Brush rollers # / rotation speed | 2 / 2,000 |
| Filter bag (3 layer microfiber) capacity (gal.) | 1.06 |
| 3M FiltreteTM exhaust microfilter | Standard |
| Full bag indicator | Standard |
| Battery (Lithium-Ion) | 36V - 6 Ah |
| Run time (min.) | 50 |
| Recharging time (min) | 90 |
| Vac lift (in. of H2O) | 25.6 |
| Air flow (CFM) | 32 |
| Machine weight with battery (lbs.) | 16.7 |
| Noise level (dBA) | 64 |
| Machine warranty | 1 Year Limited |
| Certifications |  |
Toggle to View Specs
Model Specifications: Pacific SW16B |
|
|---|---|
| Model number | SW16B L-ION |
| Part number | 675403 |
| Working width (in) | 15 |
| Brush rollers # / rotation speed | 2 / 2,000 |
| Filter bag (3 layer microfiber) capacity (gal.) | 1.06 |
| 3M FiltreteTM exhaust microfilter | Standard |
| Full bag indicator | Standard |
| Battery (Lithium-Ion) | 36V – 6 Ah |
| Run time (min.) | 50 |
| Recharging time (min) | 90 |
| Vac lift (in. of H2O) | 25.6 |
| Air flow (CFM) | 32 |
| Machine weight with battery (lbs.) | 16.7 |
| Noise level (dBA) | 64 |
| Machine warranty | 1 Year Limited |
| Certifications | |
PACIFIC
SW16B Reference & Service
LOW PROFILE AND SWIVEL HANDLE FOR SUPERB CONTROL & CLEANING CAPABILITY
Extremely quiet: 65.3 dBA noise level
The 4 wheel stance keeps the base level and in contact with the floor surface for exceptional recovery. The patented dual brush system releases tough soils and the filtration system achieves efficiency of 99% at 0.5 microns.
Pacific SW20B

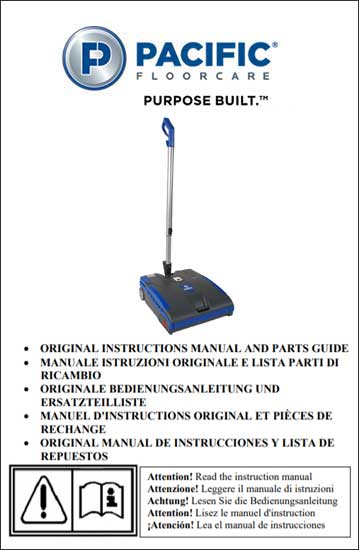

OPERATING MANUAL
The Operating Manual contains important information about proper operation and care.
Key topics include:
- Machine Overview
- Set-up

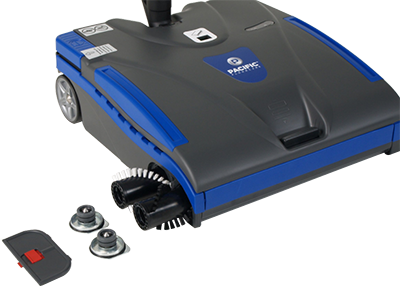

- Brush Replacement
- Battery Charger
- Maintenance
- Wiring Diagram
- Specifications
- Warranty Information
Available Accessories |
|
|---|---|
| Part Number: | Description: |
| 675403 | SW16B L-ION 15” Sweeper Vacuum, with Lithium-Ion Battery and Charger |
| 670906 | Front brush roller - BLACK |
| 670907 | Rear brush roller - WHITE | 671301 | Lithium-Ion battery 36V-6 Ah |
| 672400 | Battery charger 120V |
| 673310 | Microfiber bag package (8 bags, 2 microfilters, 1 motor protection filter) |
GENUINE SERVICE PARTS
PURPOSE BUILT TO PROVIDE MAX PERFORMANCE
Why buy a copy when you can get the original parts – the ones actually used in the machine’s original design work the best. Not only do you get maximum performance, but you also reduce hassle and downtime. Be sure to contact Pacific Floorcare or a local authorized distributor when you need authentic service parts.
