PACIFIC

V12ES & V15ED

UPRIGHT VACUUMS

The machines offer powerful vacuum capabilities with the dynamically balanced 5,000 rpm brush roller for great cleaning effectiveness. The low profile, adjustable handle and onboard tools give the operator unmatched cleaning ergonomics.


available with HEPA filtration






MOTOR PROTECTION FILTER: Standard
DECIBELS: 69 dBA – V12ES  / 79 dBA – V15ED
FULL BAG LIGHT: Standard
INPUT POWER (W): 850 – V12ES / 880 – V15ED




THE PACIFIC V12ES & V15ED UPRIGHT VACUUMS ARE PURPOSE BUILT ™ FOR:

  • Schools, universities, and daycares
  • Office buildings and convention centers
  • Hospitals, long-term care, medical centers

The Pacific V12ES & V15ED vacuums are highly flexible tools for your carpet cleaning regimen.



PACIFIC

V12ES & V15ED Specifications




Print Specifications

Model Specifications: Pacific V12ES & V15ED

Model number V12ES V15ED
Part number(s) 675404 675405
Input power (W) 850 880
Vac lift (in. of H2O) 79 90
Air flow (CFM) 103.8 103.8
Safety thermal protector on the motor Standard Standard
Full bag light Standard Standard
Two ply paper bag (gal.) 1.19 1.19
Motor protection filter (washable) Standard Standard
Electronic speed / overload control Standard Standard
Dynamic balanced brush roller (rpm) Avg. 5,000 Avg. 5,000
Working width (in.) 12 15
Cord length (ft.) 42 42
Extension hose 4:1 Standard Standard
Upholstery tool & telescopic wand Standard Standard
Noise level (dBA) 69 79
HEPA Filter Optional Optional
Machine warranty 1 Year Limited 1 Year Limited
Certifications certifications certifications
Toggle to View Specs

Model Specifications: Pacific V12ES & V15ED

Model number V12ES

V15ED
Part number(s) 675404

675405
Input power (W) 850 880
Vac lift (in. of H2O) 79 90
Air flow (CFM) 103.8 103.8
Safety thermal protector on the motor Standard Standard
Full bag light Standard Standard
Two ply paper bag (gal.) 1.19 1.19
Motor protection filter (washable) Standard Standard
Electronic speed / overload control Standard Standard
Dynamic balanced brush roller (rpm) Avg. 5,000 Avg. 5,000
Working width (in.) 12 15
Cord length (ft.) 42 42
Extension hose 4:1 Standard Standard
Upholstery tool & telescopic wand Standard Standard
Noise level (dBA) 69 79
HEPA Filter Optional Optional
Machine warranty 1 Year Limited 1 Year Limited
Certifications certifications certifications
PACIFIC

V12ES & V15ED Reference & Service


DESIGNED FOR SIMPLICITY, DURABILITY AND SUPERIOR PRODUCTIVITY

Standard 98% at 0.3 micron filtration with electrostatic microfilter or 99.97% filtration with optional HEPA filter

The machines offer powerful vacuum capabilities with the dynamically balanced 5,000 rpm brush roller for great cleaning effectiveness. The low profile, adjustable handle and onboard tools give the operator unmatched cleaning ergonomics.

Download Spec Sheet

Pacific V12ES & V15ED Upright Vacuums

OPERATING MANUAL

The Operating Manual contains important information about proper operation and care.

Key topics include:

  • Machine Overview
  • Set-up
  • Brush Adjustment
  • Maintenance
  • Specifications
  • Warranty Information

Download Operating Manual

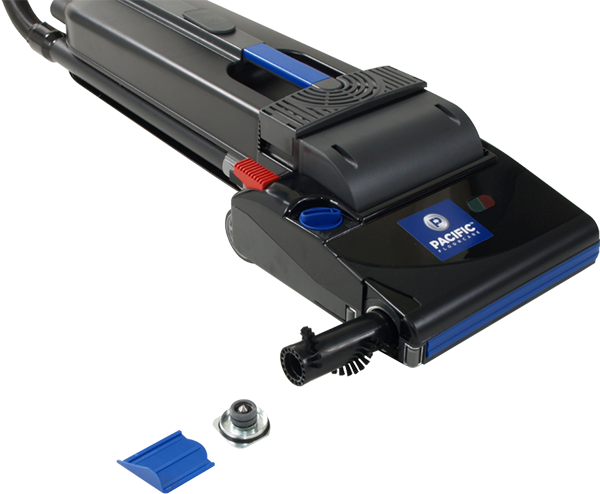

Models V12ES & V15ED shown

Available Accessories

Part Number: Description:
675404 V12ES Single Motor Upright Vacuum 12”
670900 Balance roller bar for 12” V12ES upright
674100 Extension hose w/ sleeves for 12” V12ES upright
675405 V15ED Dual Motor Upright Vacuum 15”
670900 Balance roller bar for 15” V15ED upright
674100 Extension hose w/ sleeves for 15” V15ED upright
Accessories for both V12ES & V15ED
673308 Debris bags, 6-2ply bags, 2 microfilters
671300 Timing cogged drive belt
673300 Motor protection filter
678801 Telescopic wand
678800 Crevice tool
673301 3M Filtrete™ exhaust filter
673339 HEPA filter for 675404 & 675405

GENUINE SERVICE PARTS

PURPOSE BUILT™ TO PROVIDE MAX PERFORMANCE

Why buy a copy when you can get the original parts – the ones actually used in the machine’s original design work the best. Not only do you get maximum performance, but you also reduce hassle and downtime. Be sure to contact Pacific Floorcare or a local authorized distributor when you need authentic service parts.
