PACIFIC
V12ES & V15ED
UPRIGHT VACUUMS
The machines offer powerful vacuum capabilities with the dynamically balanced 5,000 rpm brush roller for great cleaning effectiveness. The low profile, adjustable handle and onboard tools give the operator unmatched cleaning ergonomics.
available with HEPA filtration
MOTOR PROTECTION FILTER: Standard
DECIBELS: 69 dBA – V12ES / 79 dBA – V15ED
FULL BAG LIGHT: Standard
INPUT POWER (W): 850 – V12ES / 880 – V15ED
THE PACIFIC V12ES & V15ED UPRIGHT VACUUMS ARE PURPOSE BUILT ™ FOR:
- Schools, universities, and daycares
- Office buildings and convention centers
- Hospitals, long-term care, medical centers
The Pacific V12ES & V15ED vacuums are highly flexible tools for your carpet cleaning regimen.
PACIFIC
V12ES & V15ED Specifications
Model Specifications: Pacific V12ES & V15ED |
||
|---|---|---|
| Model number | V12ES | V15ED |
| Part number(s) | 675404 | 675405 |
| Input power (W) | 850 | 880 |
| Vac lift (in. of H2O) | 79 | 90 |
| Air flow (CFM) | 103.8 | 103.8 |
| Safety thermal protector on the motor | Standard | Standard |
| Full bag light | Standard | Standard |
| Two ply paper bag (gal.) | 1.19 | 1.19 |
| Motor protection filter (washable) | Standard | Standard |
| Electronic speed / overload control | Standard | Standard |
| Dynamic balanced brush roller (rpm) | Avg. 5,000 | Avg. 5,000 |
| Working width (in.) | 12 | 15 |
| Cord length (ft.) | 42 | 42 |
| Weight | 23 lbs | 25 lbs |
| Upholstery tool & telescopic wand, Extension hose 4:1 | Standard | Standard |
| Noise level (dBA) | 69 | 79 |
| HEPA Filter | Standard | Standard |
| Machine warranty | 1 Year Limited | 1 Year Limited |
| Certifications |  |
|
Toggle to View Specs
Model Specifications: Pacific V12ES & V15ED |
||
|---|---|---|
| Model number | V12ES | V15ED |
| Part number(s) | 675404 | 675405 |
| Input power (W) | 850 | 880 |
| Vac lift (in. of H2O) | 79 | 90 |
| Air flow (CFM) | 103.8 | 103.8 |
| Safety thermal protector on the motor | Standard | Standard |
| Full bag light | Standard | Standard |
| Two ply paper bag (gal.) | 1.19 | 1.19 |
| Motor protection filter (washable) | Standard | Standard |
| Electronic speed / overload control | Standard | Standard |
| Dynamic balanced brush roller (rpm) | Avg. 5,000 | Avg. 5,000 |
| Working width (in.) | 12 | 15 |
| Cord length (ft.) | 42 | 42 |
| Weight | 23 lbs | 25 lbs |
| Upholstery tool & telescopic wand, Extension hose 4:1 | Standard | Standard |
| Noise level (dBA) | 69 | 79 |
| HEPA Filter | Standard | Standard |
| Machine warranty | 1 Year Limited | 1 Year Limited |
| Certifications | |
|
PACIFIC
V12ES & V15ED Reference & Service
DESIGNED FOR SIMPLICITY, DURABILITY AND SUPERIOR PRODUCTIVITY
Standard 99.97% filtration with HEPA filter
The machines offer powerful vacuum capabilities with the dynamically balanced 5,000 rpm brush roller for great cleaning effectiveness. The low profile, adjustable handle and onboard tools give the operator unmatched cleaning ergonomics.
Pacific V12ES & V15ED Upright Vacuums
OPERATING MANUAL
The Operating Manual contains important information about proper operation and care.
Key topics include:
- Machine Overview
- Set-up

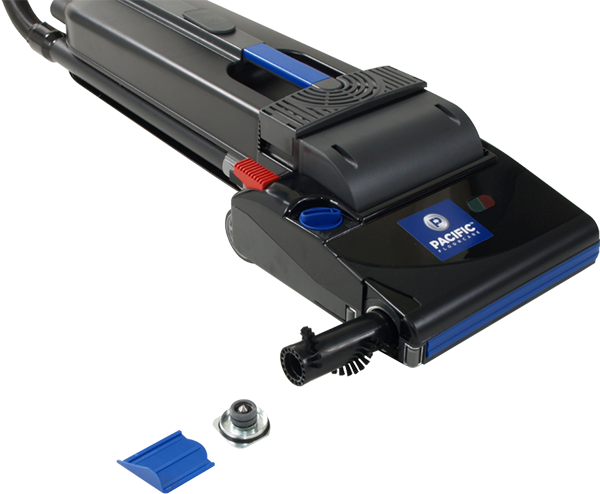

- Brush Adjustment
- Maintenance
- Specifications
- Warranty Information
Available Accessories |
|
|---|---|
| Part Number: | Description: |
| 675404 | V12ES Single Motor Upright Vacuum 12” |
| 670900 | Balance roller bar for 12” V12ES upright |
| 674100 | Extension hose w/ sleeves for 12” V12ES upright |
| 675405 | V15ED Dual Motor Upright Vacuum 15” |
| 670900 | Balance roller bar for 15” V15ED upright |
| 674100 | Extension hose w/ sleeves for 15” V15ED upright |
| Accessories for both V12ES & V15ED | |
| 673340 | 10pk Replacement bags |
| 671300 | Timing cogged drive belt |
| 673300 | Motor protection filter |
| 678801 | Telescopic wand |
| 678800 | Crevice tool |
| 673301 | 3M Filtrete™ exhaust filter |
| 673339 | Replacement HEPA filter for 675404 & 675405 |
GENUINE SERVICE PARTS
PURPOSE BUILT TO PROVIDE MAX PERFORMANCE
Why buy a copy when you can get the original parts – the ones actually used in the machine’s original design work the best. Not only do you get maximum performance, but you also reduce hassle and downtime. Be sure to contact Pacific Floorcare or a local authorized distributor when you need authentic service parts.
