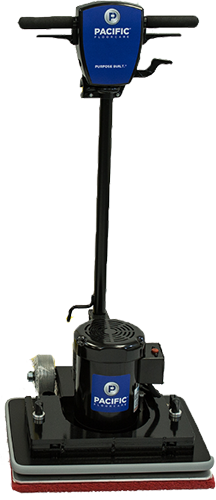

PACIFIC
FM-20ORB
FLOOR MACHINE
The FM-20ORB orbital floor machine is a powerhouse delivering the highest combination of down pressure and rpm in the industry. Then, add to, its power features that increase health, safety and ease of use and you’ve got a Purpose Built® tool that can perform the toughest tasks anytime, anywhere. You’ll benefit from having features like convenient and instant handle adjustment from the operator position, optional HEPA dust control system, and below 69 dB operation levels.
MOTOR HORSEPOWER: 1.5 hp
PAD SPEED RPM: 3,530 rpm
SAFETY APPROVALS: ETL tested to UL/CSA standards
NOISE LEVEL: 69 dBA or Below
THE PACIFIC FM-20ORB FLOOR MACHINE IS PURPOSE BUILT ™ FOR:
- Chemical-free finish removal (dry prep)
- Finish stripping (with chemical)
- Floor scrubbing (even grouted floors)
- Stone grinding and polishing
- Cement grinding and polishing
- Sanding and screening
- Other extreme-duty jobs
The Pacific FM-20ORB Floor Machine is a highly flexible tool for your floor care regimen.
PACIFIC
FM-20ORB Specifications
Model Specifications: Pacific FM-20ORB Floor Machine |
|
|---|---|
| Model number | FM-20ORB |
| Part number | 545411 (w/o weight kit) 545413 (w/ weight kit) |
| Pad Drive System | |
| Motor horsepower: | 1.5 hp |
| Motor type: | 56C, continuous duty TEFC motor |
| Pad speed rpm: | 3,530 rpm |
| Head / pad dimensions: | 20 in x 14 in |
| Productivity (per hour)*: | 7,920 ft2 at 1.0 mph (scrubbing) 3,960 ft2 at 0.5 mph (finish removal) |
| Electrical System | |
| Voltage: | 115 V |
| Power consumption amps: | 15 amp |
| Power cord length / type: | 50 ft, 14/3 STO, safety yellow |
| Safety approvals: | ETL tested to UL/CSA standards |
| Machine Specifications | |
| Product length: | 20 in |
| Product width: | 20 in |
| Product height: | 46 in |
| Product weight (w/cord): | 125lb (without weight kit) |
| Product weight (w/optional weight kit): | 165 lb |
| Sound level (operator’s ear): | < 69 dBA |
| Base construction: | Epoxy coated, 3/4 in thick steel weldment |
| Pad drive plate: | 0.25 in thick 6061 aluminum |
| Reach under with weights: | Yes, 2.5 in on three sides |
| Handle construction: | Welded structural steel tubing |
| Safety interlock triggers: | Yes |
| Handle adjustment: | Lever at operator position near triggers |
| Dust control system (optional) | 6 qt vacuum with HEPA filtration |
| Warranty | |
| Parts**: | 3 years |
| Labor: | 1 year |
**Excluding wear items
Note: Specifications subject to change without notice
Toggle to View Specs
Model Specifications: Pacific FM-20ORB Floor Machine |
|
|---|---|
| Model number | FM-20ORB |
| Part number | 545411 (w/o weight kit) 545413 (w/ weight kit) |
| Pad Drive System | |
| Motor horsepower: | 1.5 hp |
| Motor type: | 56C, continuous duty TEFC motor |
| Pad speed rpm: | 3,530 rpm |
| Head / pad dimensions: | 20 in x 14 in |
| Productivity (per hour)*: | 7,920 ft2 at 1.0 mph (scrubbing) 3,960 ft2 at 0.5 mph (finish removal) |
| Electrical System | |
| Voltage: | 115 V |
| Power consumption amps: | 15 amp |
| Power cord length / type: | 50 ft, 14/3 STO, safety yellow |
| Safety approvals: | ETL tested to UL/CSA standards |
| Machine Specifications | |
| Product length: | 20 in |
| Product width: | 20 in |
| Product height: | 46 in |
| Product weight (w/cord): | 125lb (without weight kit) |
| Product weight (w/optional weight kit): | 165 lb |
| Sound level (operator’s ear): | < 69 dBA |
| Base construction: | Epoxy coated, 3/4 in thick steel weldment |
| Pad drive plate: | 0.25 in thick 6061 aluminum |
| Reach under with weights: | Yes, 2.5 in on three sides |
| Handle construction: | Welded structural steel tubing |
| Safety interlock triggers: | Yes |
| Handle adjustment: | Lever at operator position near triggers |
| Dust control system (optional) | 6 qt vacuum with HEPA filtration |
| Warranty | |
| Parts**: | 3 years |
| Labor: | 1 year |
*Productivity from the ISSA 540 cleaning times handbook
**Excluding wear items
Note: Specifications subject to change without notice
PACIFIC
FM-20ORB Reference & Service
HIGHEST PERFORMANCE WITH THE CLEANEST, QUIETEST, EASIEST OPERATION
Delivering the highest combination of down pressures and RPM in the industry. Then, add to its power with features like the first high-speed orbital to achieve less than 69 dBa noise levels, an instantly adjustable handle and optional HEPA dust control, and you’ve got a Purpose Built® tool that can perform the toughest tasks anytime, anywhere.
Pacific FM-20ORB
OPERATING MANUAL
The Operating Manual contains important information about proper operation and care.
Key topics include:
- Machine Overview
- Set-up
- Pad / Brush Selection
- Operation
- Lifting and Transportation
- Wiring Diagram
- Specifications
- Warranty Information
Download Operating Manual
Download Dust Control Manual
Download Solution Tank Kit Instructions
Available Accessories |
|
|---|---|
| Part Number: | Description: |
| 555928 | Pad, 14x20 Maroon CFR, case of 10 |
| 555948 | Pad, 14x20 Red scrub, case of 5 | 555958 | Pad, 14x20 White polish, case of 5 |
| 555908 | Pad, 14x20 Black strip, case of 5 |
| 555968 | Pad, 14x20 Turf, case of 4 |
| 855909 | Retaining pad, 20x12, for use between backer pad and SPP pad |
| 545001 | Weight kit, 40 lb, 20 in (includes two weight plates & attachment hardware) |
| 545003 | Dust control kit, 20 in (includes vacuum, attachment hardware & dust skirt) |
| 540601 | Paper bags, 10 pack, dust control kit |
| 545005 | Solution tank kit, 4 gallon |
GENUINE SERVICE PARTS
PURPOSE BUILT TO PROVIDE MAX PERFORMANCE
Why buy a copy when you can get the original parts – the ones actually used in the machine’s original design work the best. Not only do you get maximum performance, but you also reduce hassle and downtime. Be sure to contact Pacific Floorcare or a local authorized distributor when you need authentic service parts.
