FM-17EHD & FM-20EHD
EXTREME HEAVY DUTY FLOOR MACHINES
You don’t run from the tough jobs, so make sure to bring a machine that has your back. And, a machine that does these kinds of jobs can’t have a weak link – it has to be designed top-to-bottom with tried-and-tested materials and components. The EHD unit includes an extreme-duty TEFC motor, solid steel, harsh duty gear box and coupler system, optional 40 pound weight kit, and a 10-year base warranty.
Year Base Warranty!
- First-ever “safe start” indicator helps eliminate “taking off” at start-up
- Instant adjustment from handle – no hard knobs or awkward levers
- Standard weight kit results in over 140 lb of down pressure
- Solid steel, harsh duty gear box and coupler system
- Chrome-plated TEFC motor
THE PACIFIC FM-17EHD & FM-20EHD FLOOR MACHINES ARE PURPOSE BUILT ™ FOR:
- Stone grinding and polishing
- Cement grinding and polishing
- Scarifying
- Sanding and screening
- Other extreme-duty jobs
The Pacific FM-17EHD & FM-20EHD Floor Machines are highly flexible tools for your floor care regimen.
PACIFIC
FM-17EHD & FM-20EHD Specifications
Pacific FM-17EHD & FM-20EHD Extreme Heavy Duty Floor Machines |
||
|---|---|---|
| Model number | FM-17EHD | FM-20EHD |
| Part number | 535457 | 535456 |
| Pad Drive System | ||
| Motor horsepower: | 1.5 hp | 1.5 hp |
| Motor type: | 66 FR, totally enclosed external fan cooled induction motor | 66 FR, totally enclosed external fan cooled induction motor |
| Gear box: | Triple-planetary, severe duty gear box with steel coupler | Triple-planetary, severe duty gear box with steel coupler |
| Pad speed rpm: | 158 rpm | 158 rpm |
| Pad diameter: | 17 in | 20 in |
| Equipped with pad driver: | Yes | Yes |
| Productivity (per hour)*: | 1,925 ft2 | 2,220 ft2 |
| Electrical System | ||
| Voltage: | 115 V | 115 V |
| Power consumption amps: | 15 amp | 15 amp |
| Power cord length / type: | 50 ft, 14/3 STO, safety yellow | 50 ft, 14/3 STO, safety yellow |
| Safety approvals: | ETL tested to UL/CSA standards | ETL tested to UL/CSA standards |
| Machine Specifications | ||
| Product length: | 22 in | 26 in |
| Product width: | 18 in | 21 in |
| Product height: | 45 in | 45 in |
| Product weight (w/cord): | 111 lb | 114 lb |
| Product weight (w/optional weight kit): | 151 lb | 154 lb |
| Sound level (operator’s ear): | < 66 dBA | < 66 dBA |
| Base construction: | Dual-wall, rotationally molded impact resistant polyethylene | Dual-wall, rotationally molded impact resistant polyethylene |
| Handle construction: | Welded structural steel tubing | Welded structural steel tubing |
| Safety interlock on triggers: | Yes | Yes |
| Vertical handle safety lockout: | Yes | Yes |
| Handle construction: | Welded structural steel tubing | Welded structural steel tubing |
| Handle adjustment: | Lever at operator position near triggers | Lever at operator position near triggers |
| Warranty | ||
| Base: | 10 years | 10 years |
| All other components**: | 3 years | 3 years |
| Labor: | 1 year | 1 year |
**Excluding wear items
Note: Specifications subject to change without notice
Toggle to View Specs
Pacific FM-17EHD & FM-20EHD Extreme Heavy Duty Floor Machines |
||
|---|---|---|
| Model number | FM-17EHD | FM-20EHD |
| Part number | 535457 | 535456 |
| Pad Drive System | ||
| Motor horsepower: | 1.5 hp | 1.5 hp |
| Motor type: | 66 FR, totally enclosed external fan cooled induction motor | 66 FR, totally enclosed external fan cooled induction motor |
| Gear box: | Triple-planetary, severe duty gear box with steel coupler | Triple-planetary, severe duty gear box with steel coupler |
| Pad speed rpm: | 158 rpm | 158 rpm |
| Pad diameter: | 17 in | 20 in |
| Equipped with pad driver: | Yes | Yes |
| Productivity (per hour)*: | 1,925 ft2 | 2,220 ft2 |
| Electrical System | ||
| Voltage: | 115 V | 115 V |
| Power consumption amps: | 15 amp | 15 amp |
| Power cord length / type: | 50 ft, 14/3 STO, safety yellow | 50 ft, 14/3 STO, safety yellow |
| Safety approvals: | ETL tested to UL/CSA standards | ETL tested to UL/CSA standards |
| Machine Specifications | ||
| Product length: | 22 in | 26 in |
| Product width: | 18 in | 21 in |
| Product height: | 45 in | 45 in |
| Product weight (w/cord): | 111 lb | 114 lb |
| Product weight (w/optional weight kit): | 151 lb | 154 lb |
| Sound level (operator’s ear): | < 66 dBA | < 66 dBA |
| Base construction: | Dual-wall, rotationally molded impact resistant polyethylene |
Dual-wall, rotationally molded impact resistant polyethylene |
| Handle construction: | Welded structural steel tubing | Welded structural steel tubing |
| Safety interlock on triggers: | Yes | Yes |
| Vertical handle safety lockout: | Yes | Yes |
| Handle construction: | Welded structural steel tubing | Welded structural steel tubing |
| Handle adjustment: | Lever at operator position near triggers |
Lever at operator position near triggers |
| Warranty | ||
| Base: | 10 years | 10 years |
| All other components**: | 3 years | 3 years |
| Labor: | 1 year | 1 year |
*Productivity from the ISSA 540 cleaning times handbook
**Excluding wear items
Note: Specifications subject to change without notice
PACIFIC
FM-17EHD & FM-20EHD Reference & Service
PURPOSE BUILT™ FOR THE TOUGH STUFF – GRINDING, SANDING, SCARIFYING – IT LOVES IT.
You don’t run from the tough jobs so make sure to bring a machine that has your back. And, a machine that does these kinds of jobs can’t have a weak link – it has to be designed top-to-bottom with tried-and-tested materials and components. Now available with optional weight kit to take this tool to new heights of performance.
Pacific FM-17HD & FM-20HD
OPERATING MANUAL
The Operating Manual contains important information about proper operation and care.
Key topics include:
- Machine Overview
- Set-up
- Pad / Brush Selection
- Operation
- Lifting and Transportation
- Wiring Diagram
- Specifications
- Warranty Information

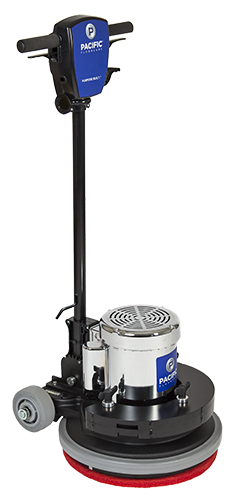

Models Pacific FM-17EHD w/weight kit shown
